Exporters of Tee

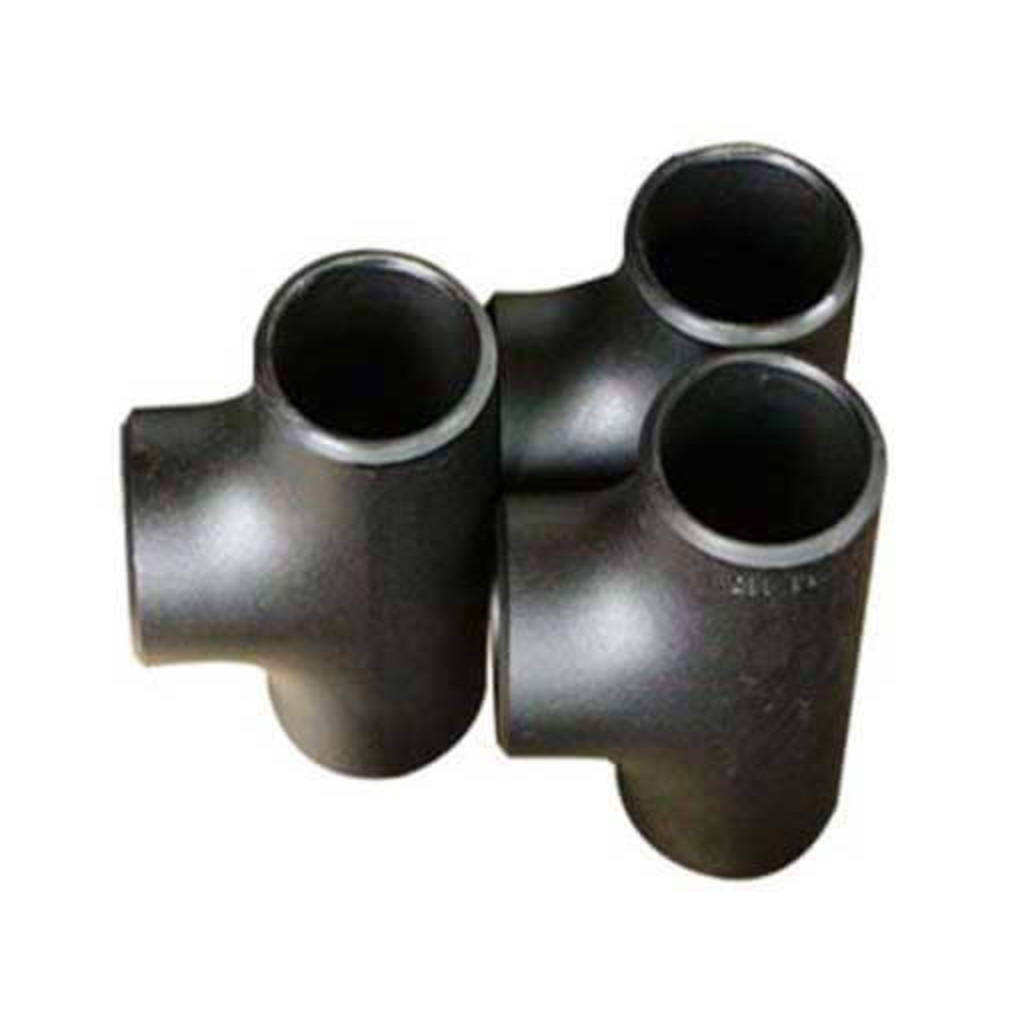

Pipe Tees come in a number of shapes and sizes, and Exotic Metals LLP is a renowned exporter and supplier of these products. In order to effectuate the direction and mixing of fluids, tee fittings, often referred to as 3-way pipe fittings, look like the letter ‘T’ in the alphabet. They allow two straight pipes and one vertical pipe to be connected. Pipe tees, which are mostly of two varieties—Equal Tee and Unequal Tee (Reducing Tee)—with all forms of exoctic materials, are widely employed in pipe organizations to transport two-phase fluid combinations.
Our stainless-steel tees are of the highest quality. We frequently provide stainless steel tees, carbon steel tees, and special grade tees to a variety of industries, including fabrication, petrochemical, shipbuilding, paper exporting, chemical exporting, and power generation. Along with producing standard buttweld lateral tees, we also produce them in stainless steel, nickel alloys, carbon steel, and alloy steel grades. We also welcome group offers and make sure that the demands are satisfied by the deadline. In India, we are a reputable supplier of t-shirts.

Types of Tee

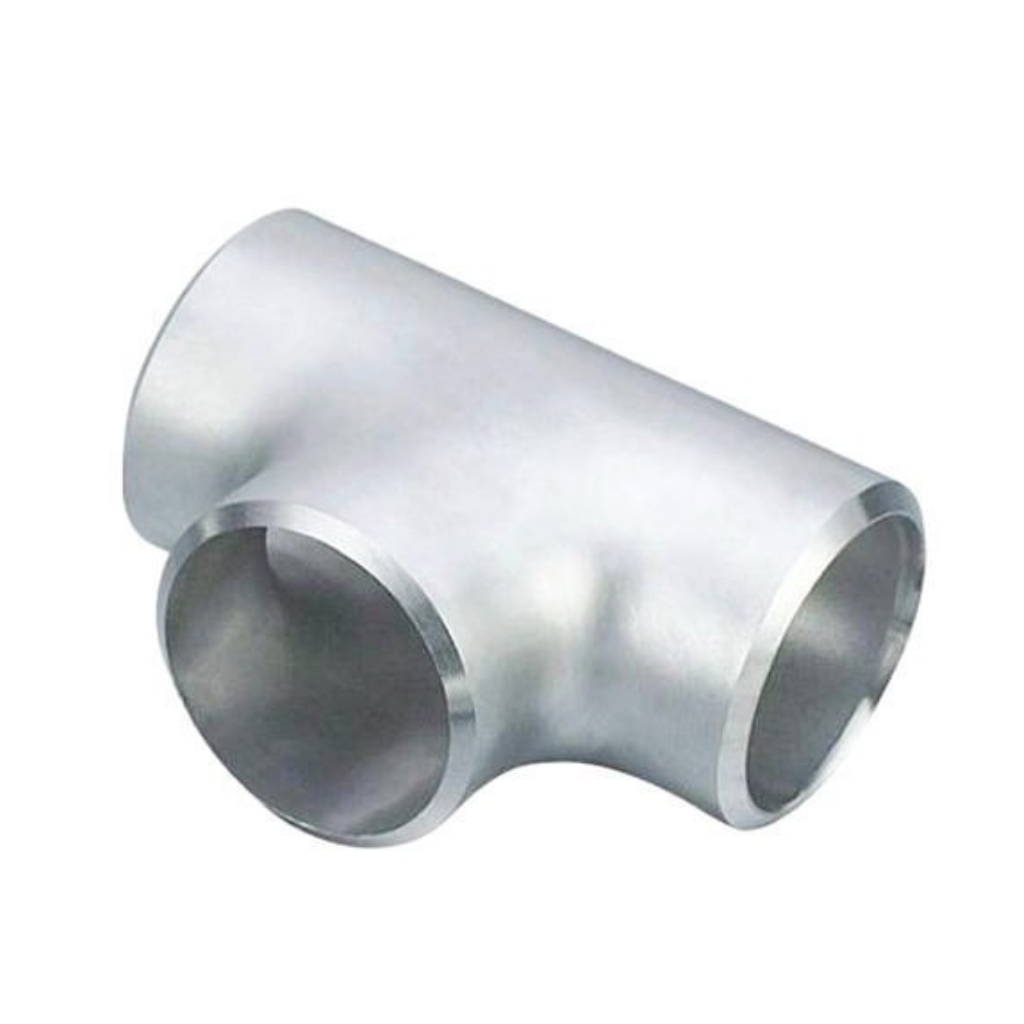

Equal Tee

We provide a wide selection of equal tees. In an equal tee (straight tee), the branch’s diameter matches the run pipe’s diameter.

Unequal Tee

We are large-scale producers of uneven tees, in which the diameter of the branch size is smaller than the diameter.

Specifications for Exotic Tee

Plates	Specification
Outside Diamter	Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)
Types	Equal Tee, Reducing Tee
Thickness	3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Standards	ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43 DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 EN: EN10253-1, EN10253-2
Surface Coatings	Black Painted, Varnished, Epoxy Coated, Galvanized
Size Range	1/2”, 1”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 16”, 20” to 48”.
Stainless Steel	ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Super Duplex Steel	S32750
Duplex Steel	ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Carbon Steel	ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91
Alloys Steel	ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.
Nickel Alloys	Nickel Alloys 200, Nickel Alloys 201
Titanium	Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI
Inconel	Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L
Hastelloy	Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G
Molybdenum	ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum
Cobalt	Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21
Niobium	ASTM B394, R04200 R04210
Nimonic	Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc
Tungsten	W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten
Nichrome	Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc
Magnesium	Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc.
Tantalum	Tantalum – Grade 1.
Monel	Monel 400, Monel k500
MU-METAL	MU-METAL
Zirconium	Zirconium 702, Zirconium 705,Zirconium 705, Zirconium-2, Zirconium-4
Beryllium Copper	Alloy 25 UNSC17200
Aluminium	1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175
Copper Alloys	C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000

Exotic Metals LLP– Exporters of Tee

Tee Exporters

Tee Supplier

Tee Exporter

About Pipe Tee Exporters

We provide a trusted selection of products at Exotic Metals LLP, including industrial pipe Tee, Stainless steel Tee, Carbon steel Tee, Alloy steel Tee, Nickel alloy Tee, Duplex steel Tee, etc. We are one of India’s most well-known tee exporters. For Tee, we offer top-notch, cutting-edge production services. According to customer requirements, all types, grades, sizes, specifications, materials, and customizations are offered. Our selection of industrial tees, which have a long service life, are ideal for use in numerous industries with high pressure and temperature exposures.

Chemical Compositions for Tee

	WPB B,C,D,E,	WPC C,D,E,	WP11 CL1	WP11 CL2,	WP11 CL3	WP22 CL1,	WP22 CL3	WP5 CL1,	WP5 CL3
Carbon	0.3	0.35	0.05–0.15	0.05–0.20	0.05–0.20	0.05–0.15	0.05–0.15	0.15	0.15
Manganese	0.29–1.06	0.29–1.06	0.30–0.60	0.30–0.80	0.30–0.80	0.30–0.60	0.30–0.60	0.30–0.60	0.30–0.60
Phosporus	0.05	0.05	0.03	0.04	0.04	0.04	0.04	0.04	0.04
Sulfur	0.058	0.058	0.03	0.04	0.04	0.04	0.04	0.03	0.03
Silicon	0.10 min	0.10 min	0.50–1.00	0.50–1.00	0.50–1.00	0.5	0.5	0.5	0.5
Chromium	0.4	0.4	1.00–1.50	1.00–1.50	1.00–1.50	1.90–2.60	1.90–2.60	4.0–6.0	4.0–6.0
Molybdenum	0.15 max	0.15 max	0.44–0.65	0.44–0.65	0.44–0.65	0.87–1.13	0.87–1.13	0.44–0.65	0.44–0.65
Nickel	0.4	0.4	…	…	…	…	…	…	…
Copper	0.4	0.4	…	…	…	…	…	…	…
Others	Vanadium 0.08	Vanadium 0.08	…	…	…	…	…	…	…

Mechanical Properties for Tee

		WPB	WPC, WP11-CL2	WP11-CL1, WP22-CL1 WP5-CL1 WP9-CL1	WP11-CL3, WP22-CL3 WP5-CL3 WP9-CL3	WP91
Tensile strength, minimum unless a range is given ksi (MPa)		60 (415)	70 (485)	60 (415)	75 (520)	90 (620)
Yield,strength, min ksi (MPa) (0.2% offset or 0.5% extension under-load)		35 (240)	40 (275)	30 (205)	45 (310)	60 (415)

Applications and Uses of Tee

Oil and Gas Industries.
Chemical Industries
Petrochemical Industries
Power Industry.
Food processing industry and many more.

Tee Exporters Suppliers

Exotic Metals LLP is an exporter of tee in many important Indian cities, including Mumbai, Pune, Vadodara, Rajkot, Delhi, Surat, Vapi, Hyderabad, Ahmedabad, Gujarat, Coimbatore, Chennai, Indore, Nagpur, Lucknow, Gwalior, Bareilly, and Vijaywada. We provide tees in India. We are the top supplier and exporter of t-shirts in India. In many Indian cities, we have sales offices. Our headquarters are in Mumbai, and from there we ship Tee to all of India’s major cities.
